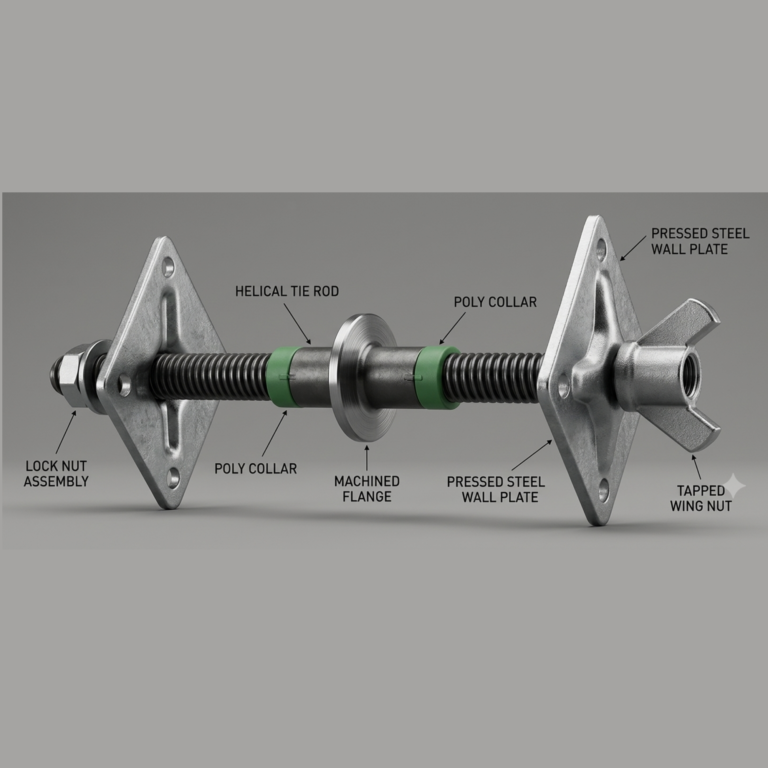

Heavy Duty Tie System

Our most popular tie system is designed for maximum reliability and ease of use. The rapid ties are available with a complete range of accessories, including water plates, wing nuts, cast-iron water barrier anchors, plastic tubes, and cones.

Key Features:
Robust Construction: The 16mm diameter tie rod is engineered with a robust, self-cleaning thread.
High Load Capacity: This system offers a safe working load (SWL) of 95kN.

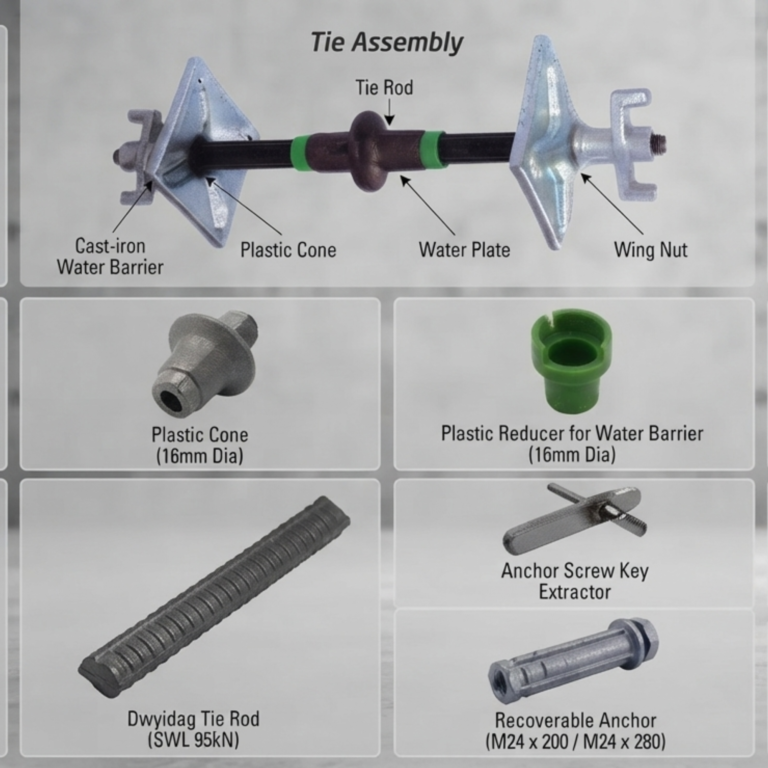

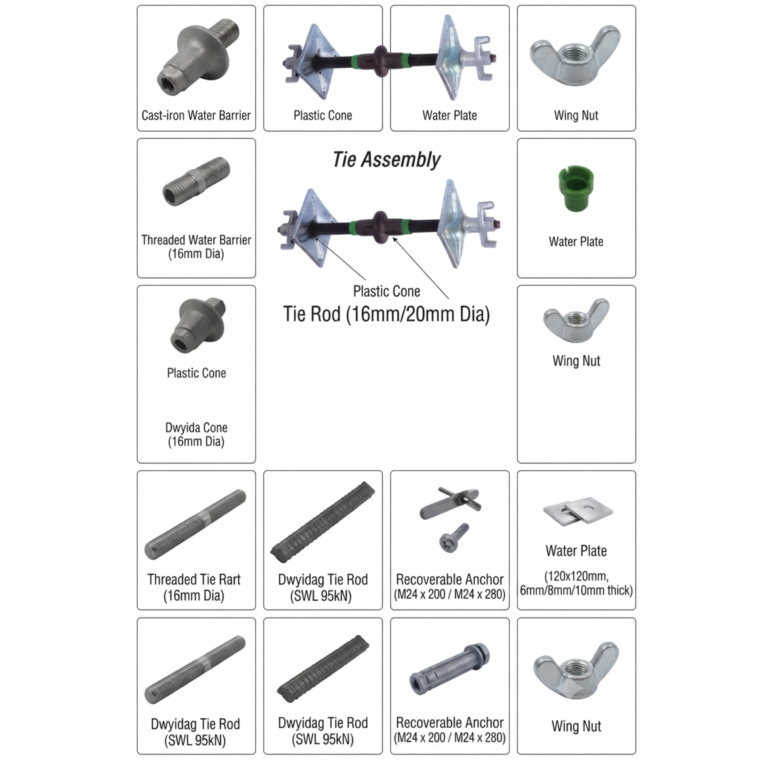

Comprehensive Components: The system includes all necessary hardware for a complete tie assembly, such as:
Threaded water barriers (16mm diameter)
Cast-iron water barriers (16mm/20mm diameter)
Plastic cones and reducers
Tie rod connectors (hex nuts)
Various water plate sizes (120x120mm, 6mm/8mm/10mm thick, and two-wing options)
Anchor screw key extractors and recoverable anchors (M24 x 200/280)
