HD Prop Support System

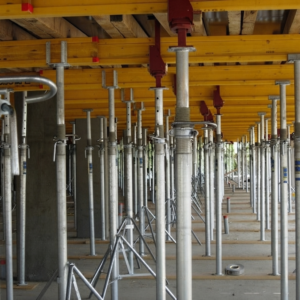

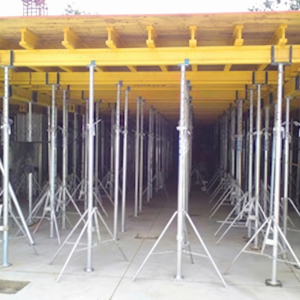

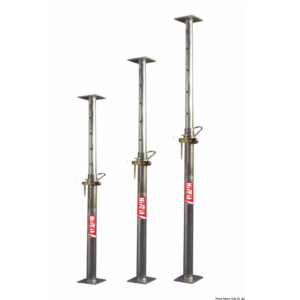

The HD Prop Support System is an advanced and heavy-duty adjustable propping solution designed to provide reliable support for slab formwork in residential, commercial, and industrial construction projects. The system is assembled using heavy-duty adjustable props with primary and secondary H20 timber beams, aluminum beams, or a combination of aluminum primary beams and H20 timber secondary beams.Engineered for strength, flexibility, and efficiency, the system can accommodate slabs of various lengths, widths, and thicknesses with ease. Its modular design allows for quick installation and dismantling while minimizing labour requirements. The HD Prop Support System is suitable for slab soffit heights of up to 4.0 metres, making it an ideal choice for a wide range of construction applications.

Design Parameters

Prop spacing: 2.50 m to 2.90 m
Primary beam spacing: 3.00 m to 4.00 m
Secondary beam spacing: 0.50 m to 0.75 m
Suitable for soffit heights up to 4.00 m

Key Benefits
Heavy-duty adjustable support for high load-bearing capacity
No fixed grid dimensions, allowing greater design flexibility
Compatible with H20 timber beams, aluminum beams, or a combination of both
Fast and easy installation with minimal manpower
Fewer components reduce installation time and overall project costs
Flexible and versatile solution for slabs of different sizes and thicknesses
Strong, stable, and safe support system for efficient concrete formwork operations
